Taito G-Net BIOS Flashing Instructions

Taito G-Net BIOS Flashing Instructions. The newer games that are written to Compact Flash require this BIOS update to run.






V2.0 BIOS archive here.

Process;

Extract > Burn to M27C800 > Remove PCMCIA card from Mobo > Bridge Jumper JP1 > Insert M27C800 > Power on > wait for a couple of minutes.

There will be a few progress bars across the screen. The first indicates the flash, the second (no idea) and the third validates the flash. After it has completed there are two lines of Japanese text asking to remove the EPROM and jumper, insert a game card and reboot. Job done.

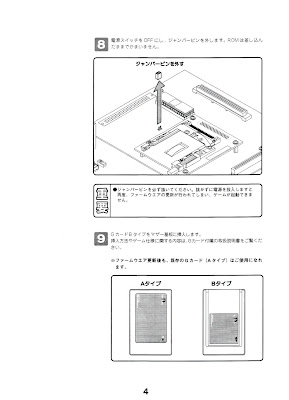

Thanks to Dave_K. for the images. http://arcadefever.blogspot.com/
Posted by ikotsu at 20:52

20 comments:

  1. Arcade Fever19 February 2011 at 17:09

    And a shout out to stark for also helping me awhile ago on this. :)

    ReplyDelete
  2. ikotsu20 February 2011 at 12:59

    Good old starke, I got all of my G-Net stuff from him. :D

    ReplyDelete
  3. Anonymous13 January 2012 at 03:15

    excuse me, what no one speak english?

    ReplyDelete
  4. ikotsu17 January 2012 at 12:09

    To flash.

    Dowload this http://www.mediafire.com/?855z41bako7yig5

    Extract > Burn to M27C800 > Remove PCMCIA card from Mobo > Bridge Jumper JP1 > Insert M27C800 > Power on > wait for a couple of minutes.

    There will be a few progress bars across the screen. The first indicates the flash, the second (no idea) and the third validates the flash. After it has completed there are two lines of Japanese text asking to remove the EPROM and jumper, insert a game card and reboot. Job done.

    ReplyDelete
  5. Anonymous16 April 2012 at 11:26

    Link is dead.. Any new URL to share?

    ReplyDelete
  6. Peter21 April 2012 at 21:29

    Any other link to the V2.0 BIOS archive?
    Thanks.

    Kman-Sweden

    ReplyDelete
  7. ikotsu22 April 2012 at 20:45

    Here you go.

    http://ikotsu.co.uk/F35-01_m27c800.zip

    ReplyDelete
  8. Peter23 April 2012 at 08:37

    Sweet. Thanks. :)

    ReplyDelete
  9. Peter15 May 2012 at 18:27

    System Error 000777.

    Any ideas?

    ReplyDelete
  10. ikotsu16 May 2012 at 09:12

    Sorry Peter, no idea. I have flashed two G-Net systems with the archive and not run in to that problem. Is the message on screen constantly? Does the motherboard still work? Did it flash verify ok? Best bet is to verify the EPROM has burnt correctly and try again.

    ReplyDelete
  11. Peter16 May 2012 at 12:31

    It seems to flash ok. How can I tell if it's flashed ok? Still works with original games. With CF games I get the Taito start screen then the System Error 000777. I have compared the eprom with the .bin and it passes ok. Might the CF card be too new? Sandisk Ultra 4gb 30Mb/s.. Does it work with any version CHD's?
    Thanks for your help.

    ReplyDelete
  12. ikotsu20 May 2012 at 10:54

    This is the original Taito BIOS and will only run legit CF card games.
    A friend of mine has modified this code to run CHD images (similar to the G-Net modbios) but that's not quite ready for release just yet.

    ReplyDelete
  13. Peter3 June 2012 at 13:52

    Ah ok that explains a lot.
    :/ and I just bought a new mobo just to rule out a broken mobo.

    ReplyDelete
  14. Peter22 August 2012 at 14:26

    Any news on this? :)

    ReplyDelete
  15. ikotsu22 August 2012 at 17:10

    Not quite yet.

    ReplyDelete
  16. Anonymous3 July 2013 at 05:45

    Ikotsu - would you mind posting the link to modbios again please?

    ReplyDelete
  17. ikotsu5 July 2013 at 09:02

    Right now the project is on hold and has not been released in to the wild. If you're willing to pay through the nose for a BIOS someone else has released one here.

    http://www.arcademodbios.com/gnet.htm

    ReplyDelete
  18. Anonymous5 July 2013 at 16:33

    ikotsu - thanks for responding.....this is exactly what I was trying to prevent....his pricing is completely insane "through the nose" - anyone else have an alternative?

    ReplyDelete
    Replies
    1. ikotsu26 January 2015 at 16:07

      http://ikotsu.blogspot.co.uk/2015/01/taito-g-net-mod-bios.html

      Delete
